SPECIFICATIONS

Application: Tapping Screw Thread

Brand: Rowdai

Color: Blue

Model: M16 M24 M36

Motor: Servo Motor Option

Number of chucks: 8

Product name: CNC Tapping Machine

Standard Accessories: Tapping Chuck 3-16

Table size: 600*900mm

Tapping range: M6-M36

brand name: Rowdai

cnc or not: CNC

core components: PLC,Gear,motor

dimension(l*w*h): 70*62*23cm

drilling speed: other

key selling points: High Safety Level

machinery test report: Provided

max. drilling dia. (mm): Other

place of origin: Shandong, China

power (kw): 0.6

range of spindle speed(r.p.m): 50 - 1000 r.p.m

type: Bench Drilling Machine

video outgoing-inspection: Provided

voltage: 220v

warranty: 1 Year

weight (kg): 35

Overview

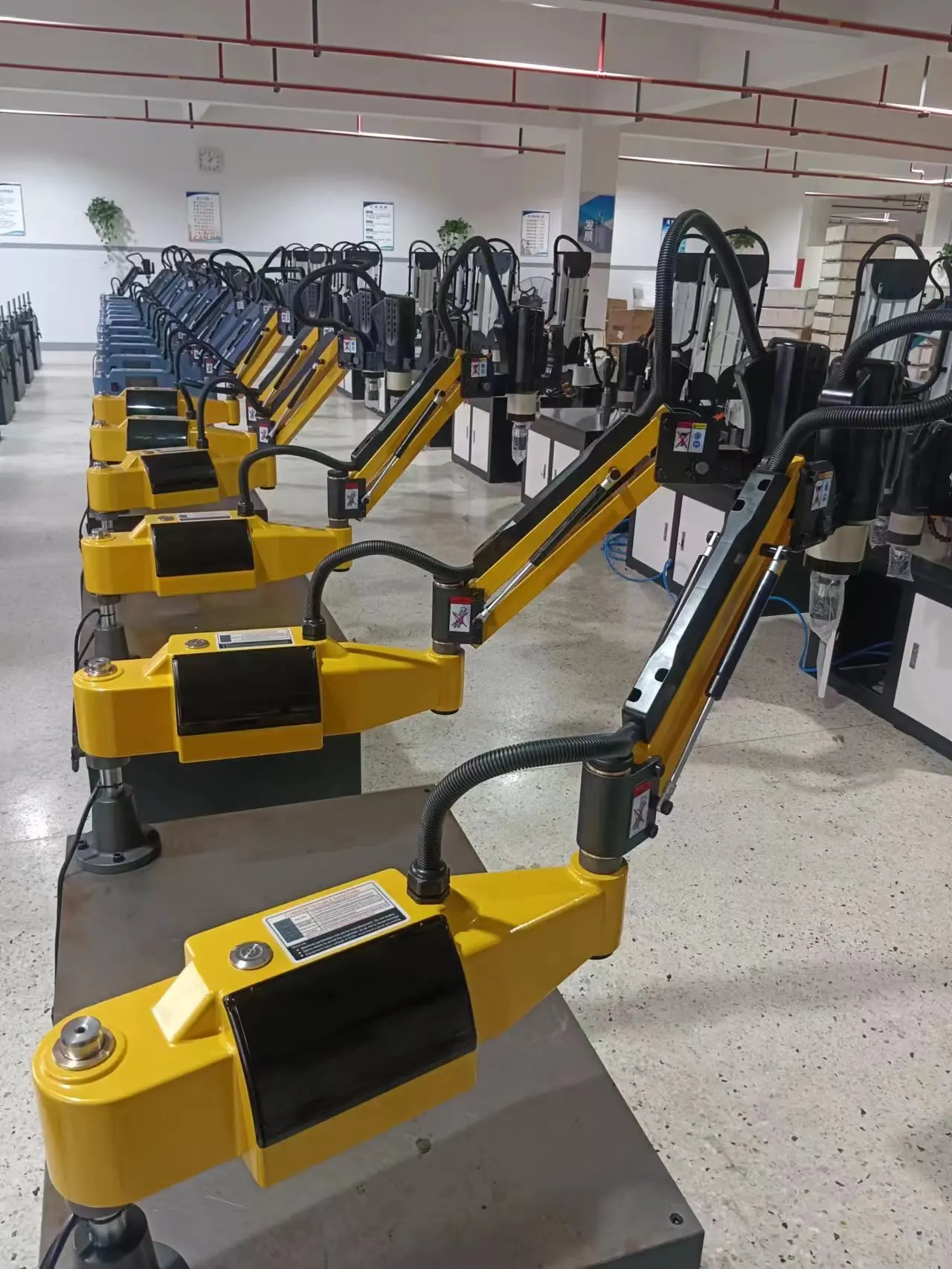

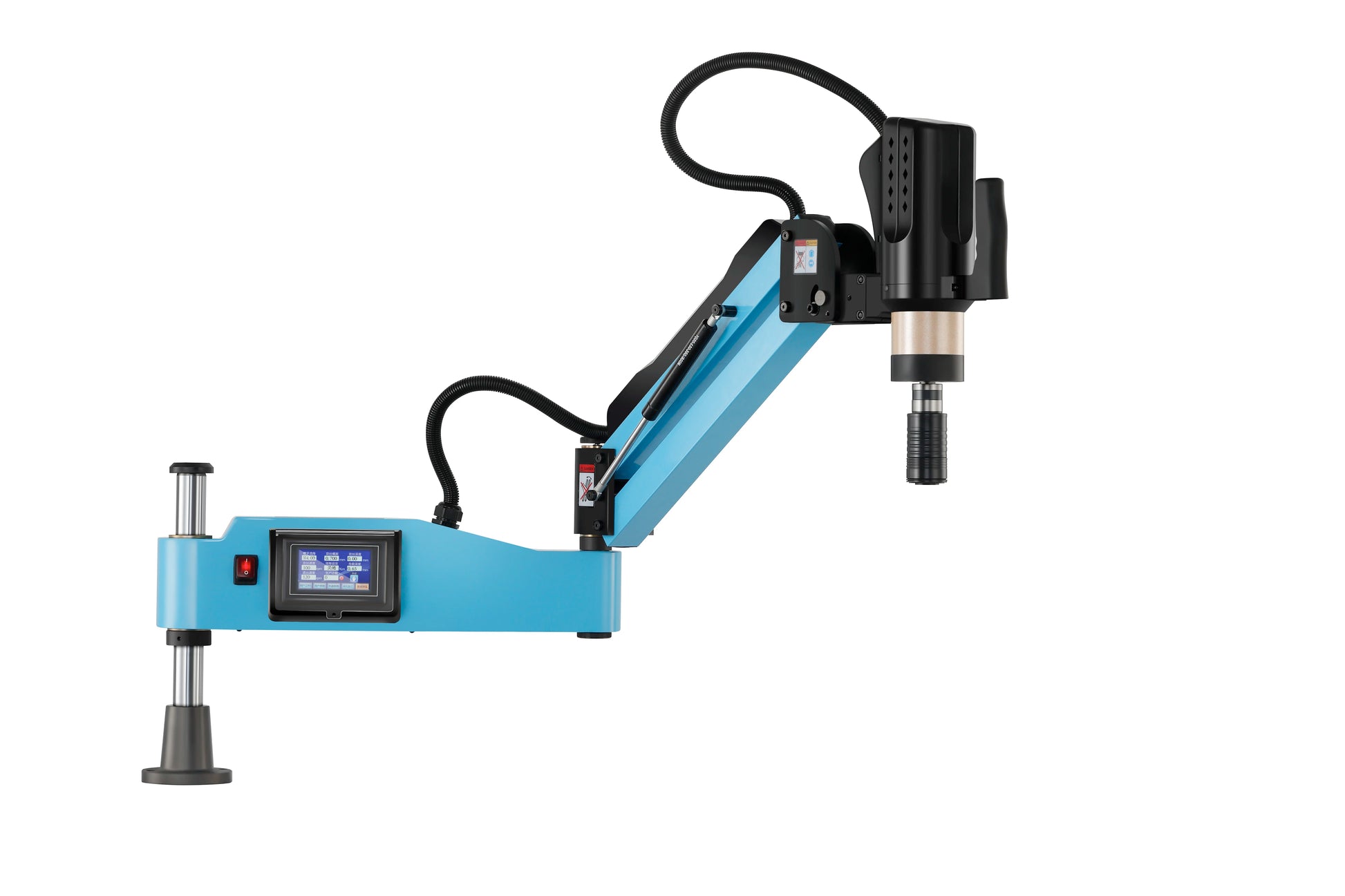

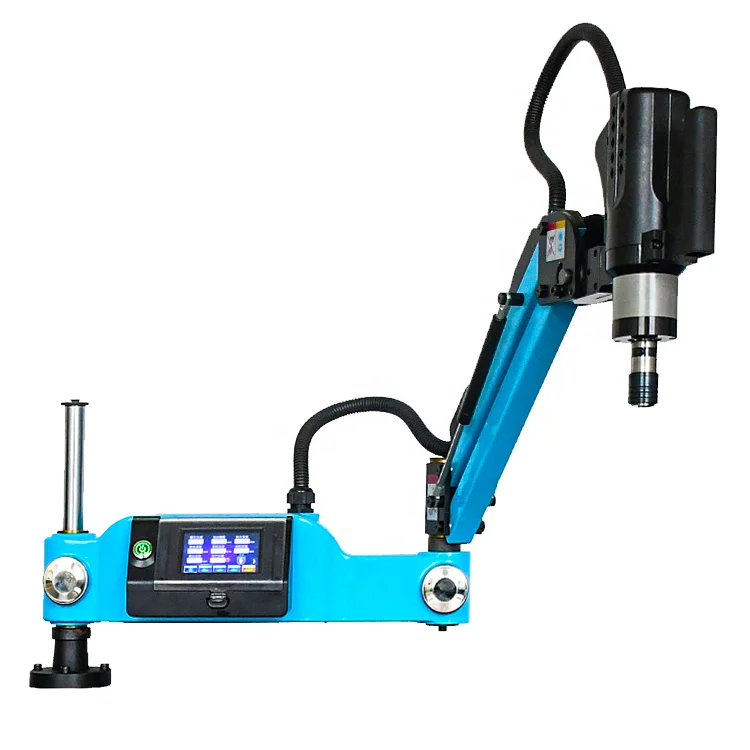

Product Display

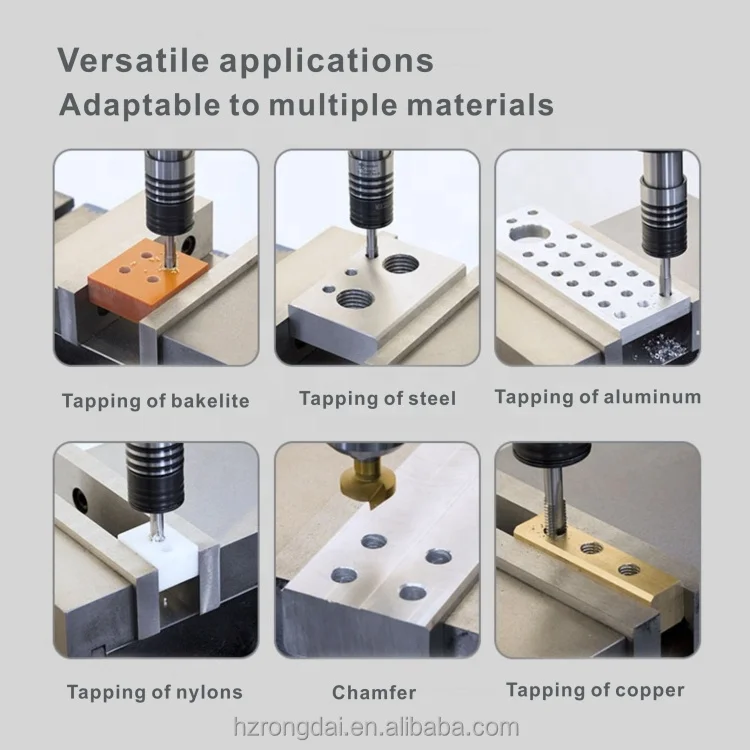

Electric tapping machine Application

1. Used in precision instrumentation, mold, and other industries thread processing;

2. Solve problems that tap easily broken and jammed during processing micro & deep hole threads;

3. Adopt a U.S. dual-core chip CNC system;
4. Can set the depth of the hole and different materials;

5. Fast tracking, security tapping; Can dynamic display the real-time data;

6. Can record the depth, number of turns, screw pitch and other data of processed thread;

7. Can be used for analyzing the data of the laboratory;

8. Can replace the desktop machine.

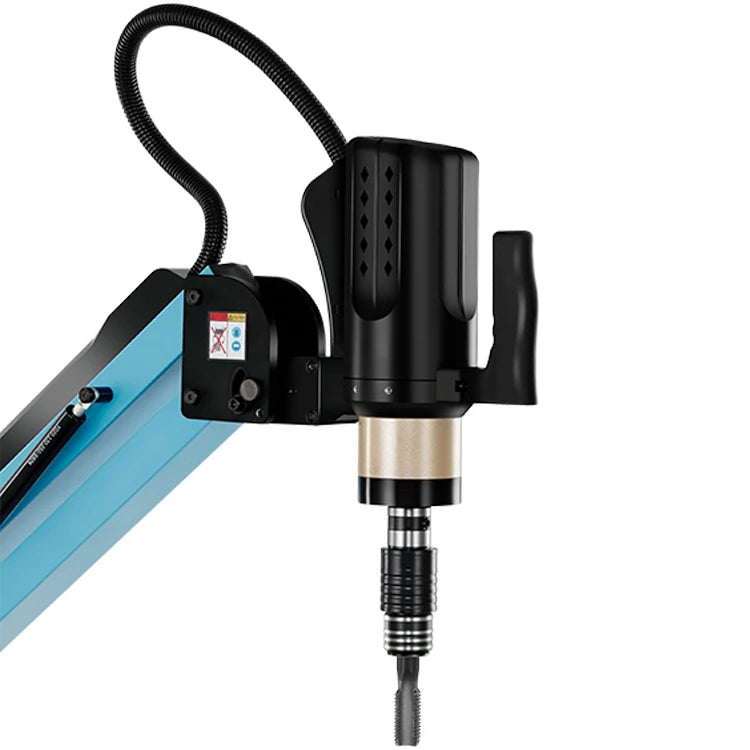

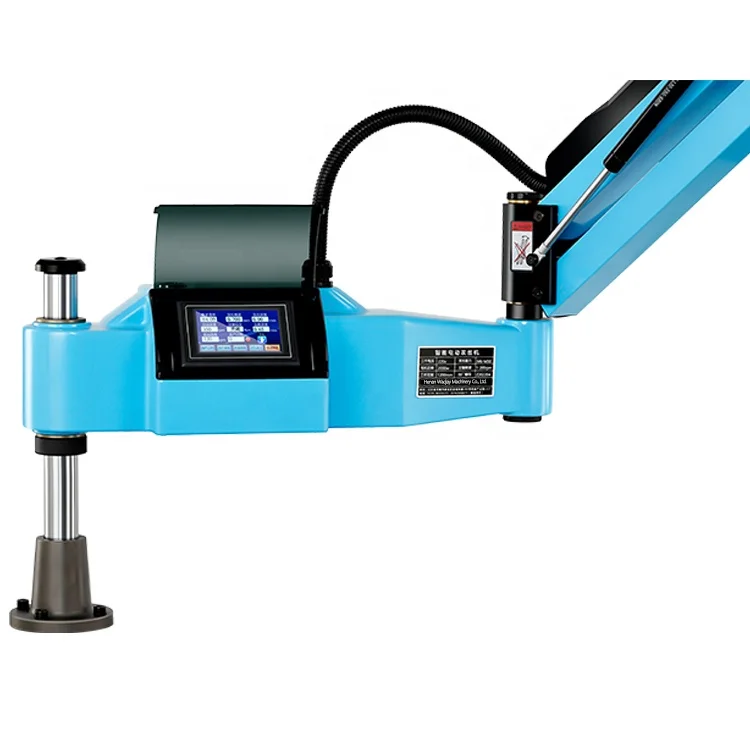

Product details

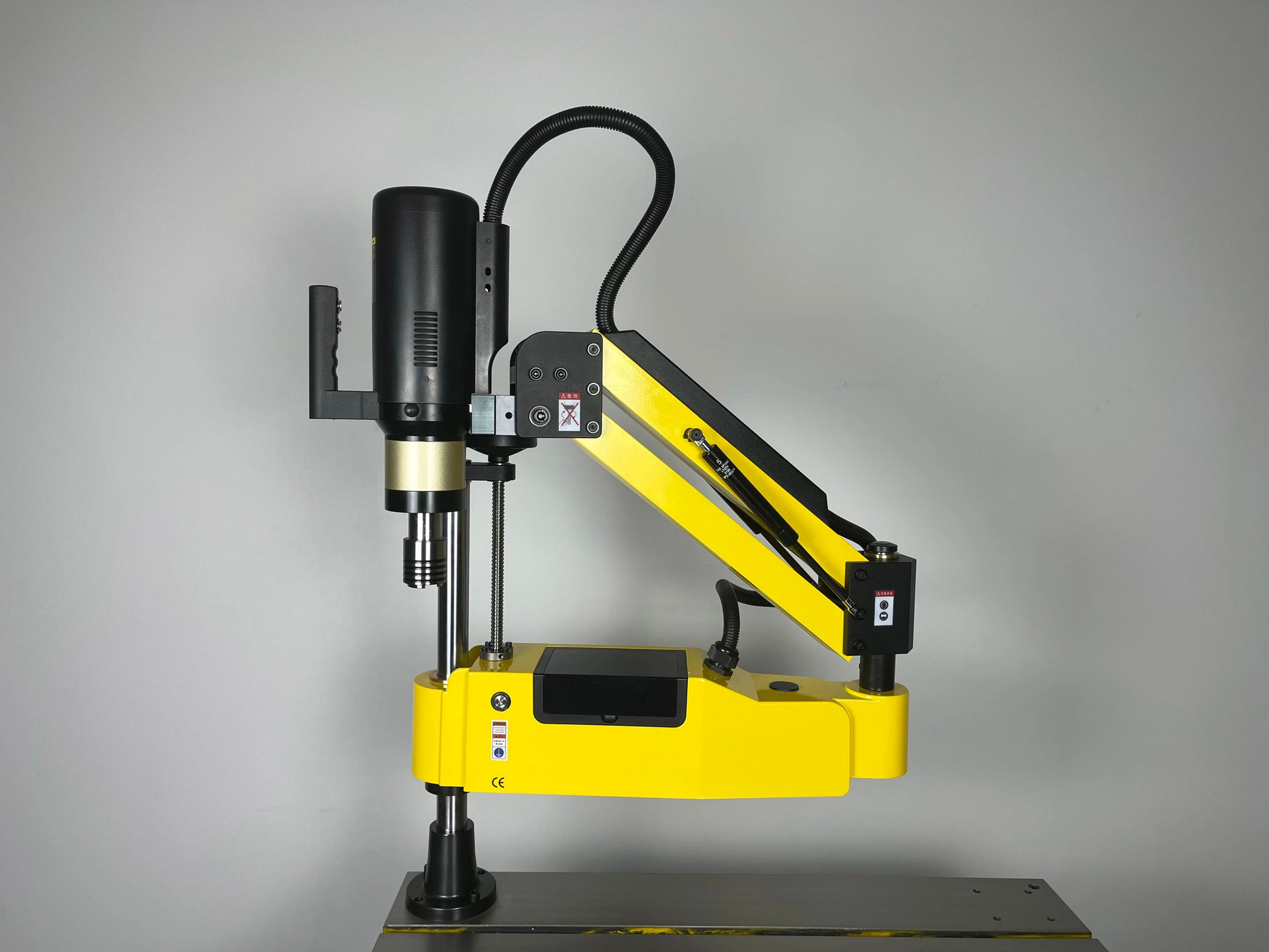

Different Models

Model	M10	M12	M16	M24	M36
Rated power	600W	600W	600W	1200W	1200W
Tapping range	M3-M10	M3-M12	M3-M16	M6-M24	M6-M36
Chuck specification	GT12	GT12	GT12	GT24	GT24
Number of chucks	5	5	8	8	11
working radius	1000mm	1000mm	1000mm	1200mm	1200mm
Minimum radius	350mm	350mm	350mm	400mm	350mm
Maximum speed	1000rpm	600rpm	300rpm	200rpm	150rpm
Input voltage	220V 50HZ

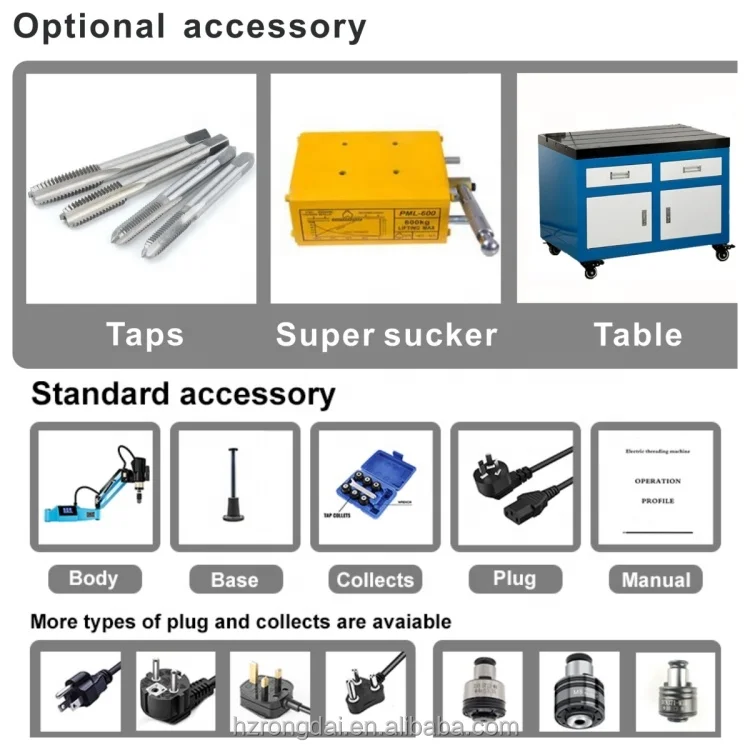

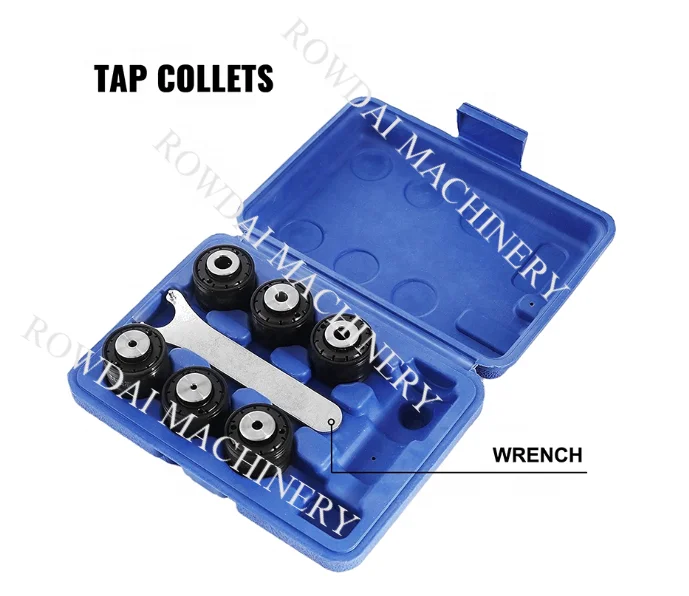

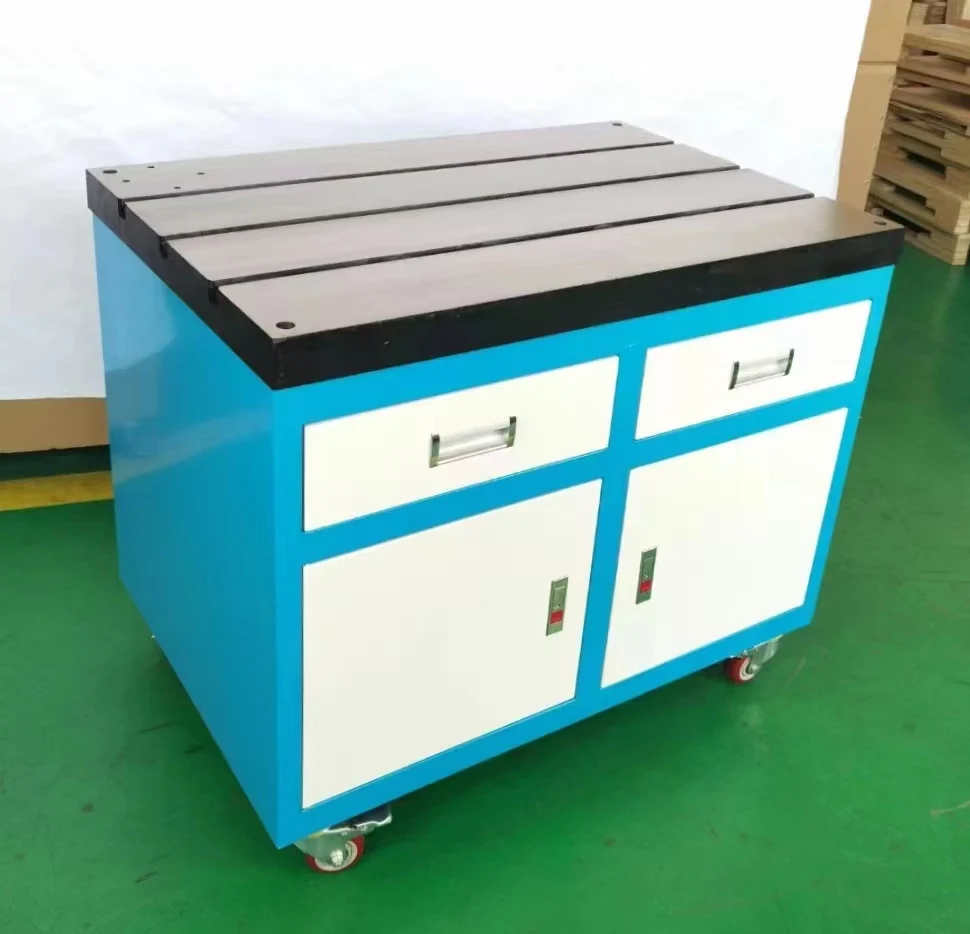

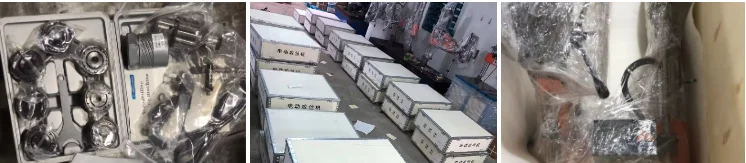

Product Accessories

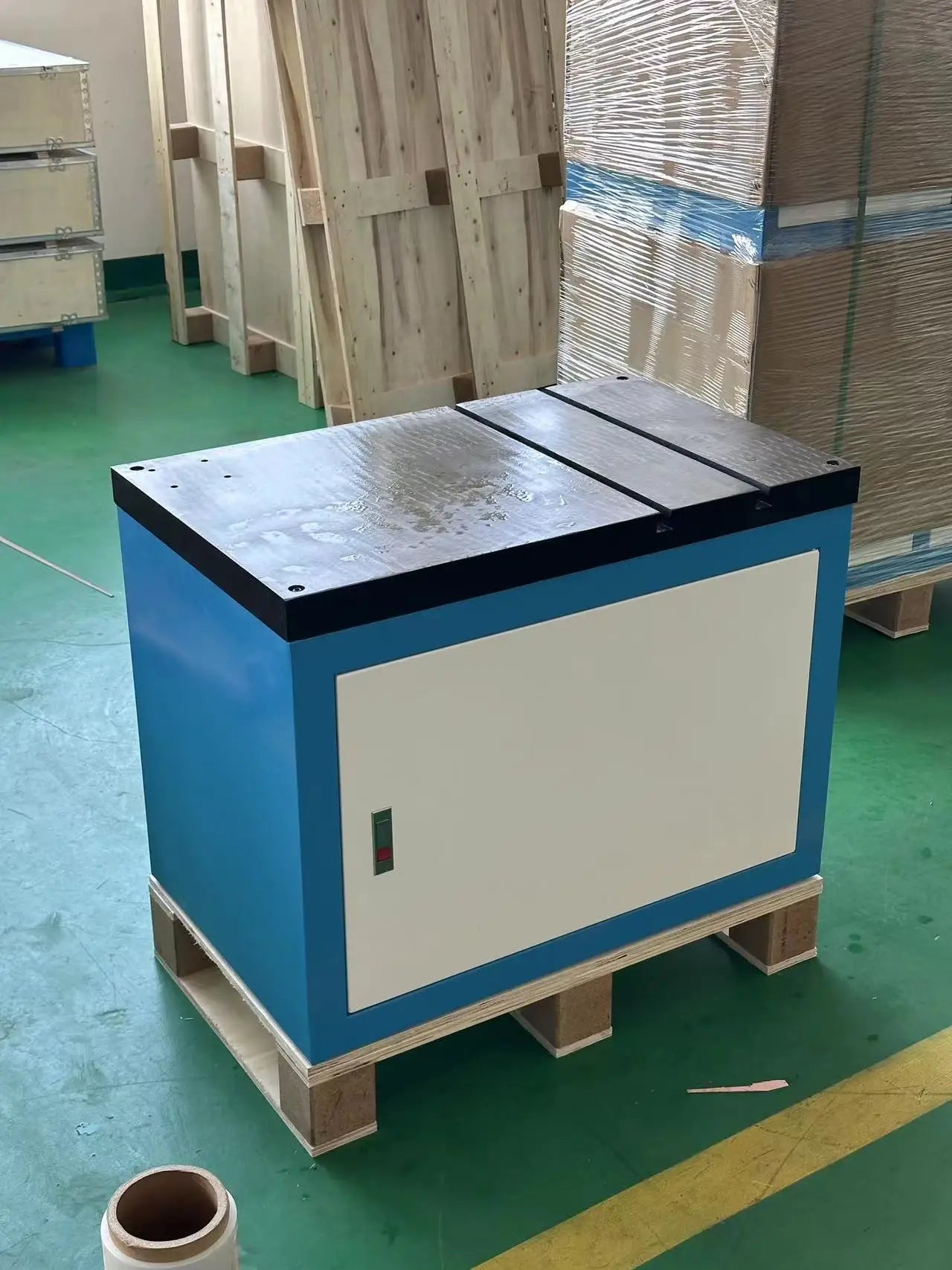

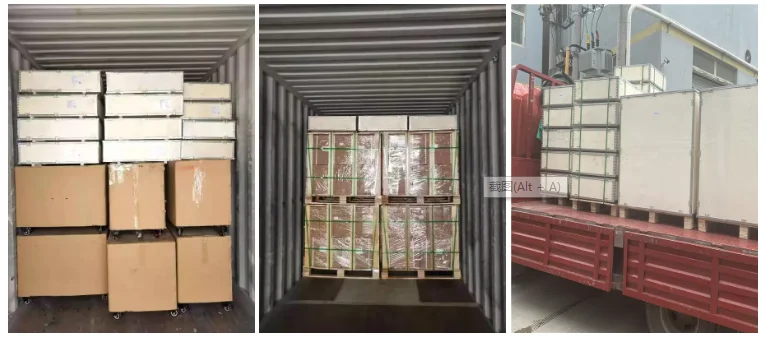

Packing & Delivery

Packing：wooden package

Delivery: 7-15days

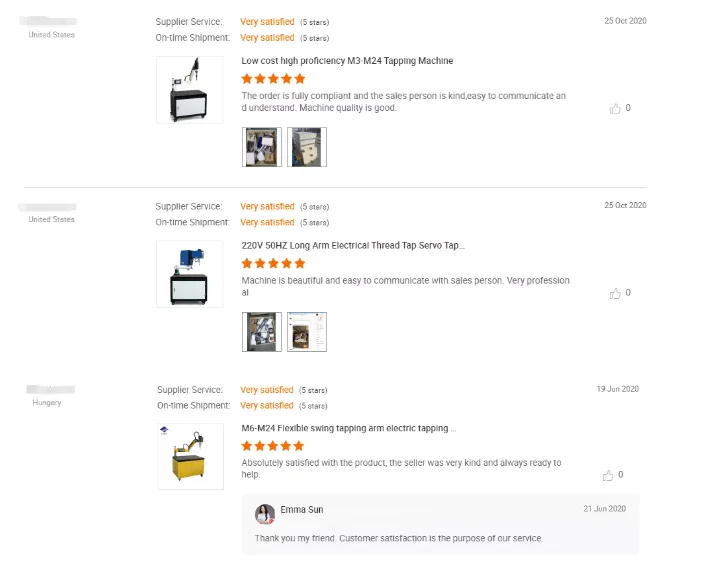

Feedback

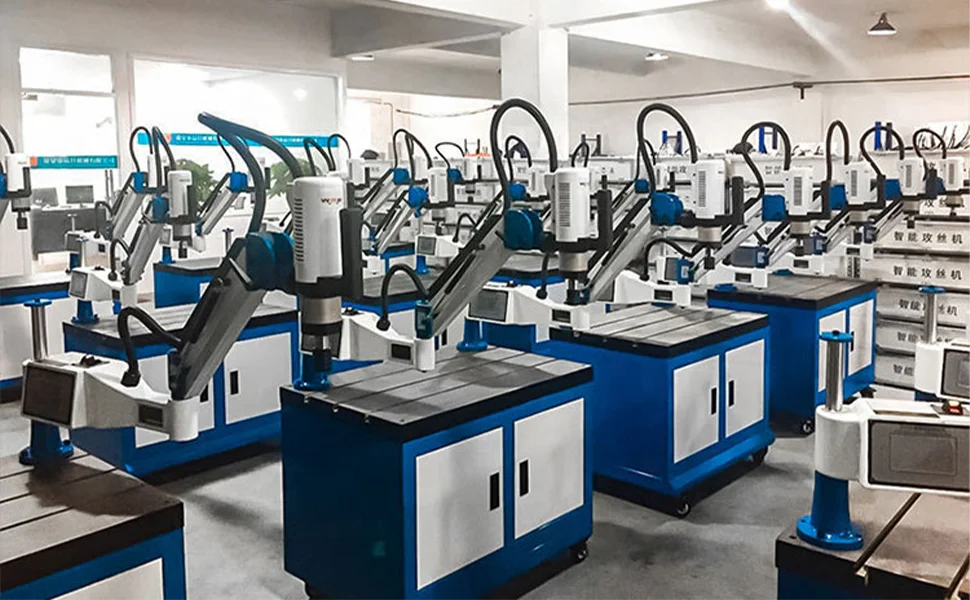

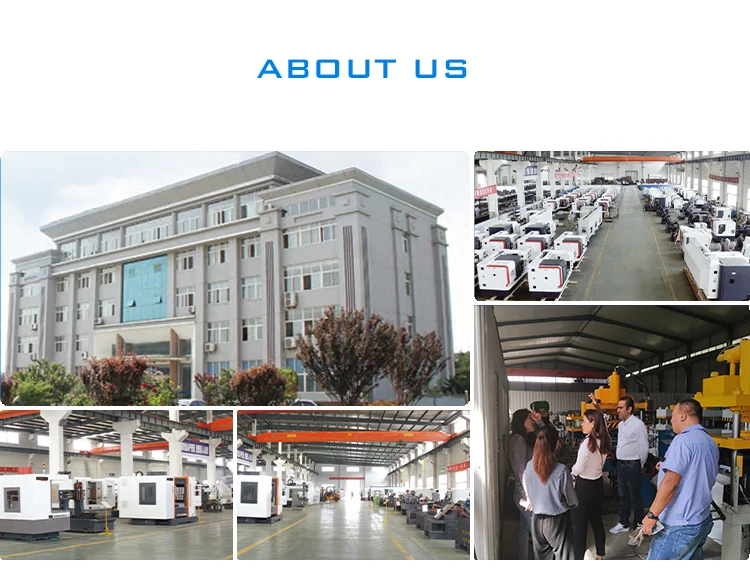

Company Introduction

Henan rowdai Machinery Equipment Co., LTD is a well-known machine tool manufacturer in the world market. The various products and technologies it operates are at the leading level at home and abroad, and the product range covers many fields. Henan rowdai Machinery Equipment Co., LTD has the right to operate import and export business, and the product quality reaches international standards. And passed the ISO international quality system certification. With excellent product quality, the company actively explores domestic and foreign markets, the marketing network covers the world, customers include many Fortune 500 companies, and the product quality has been well received by customers.

FAQ

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
