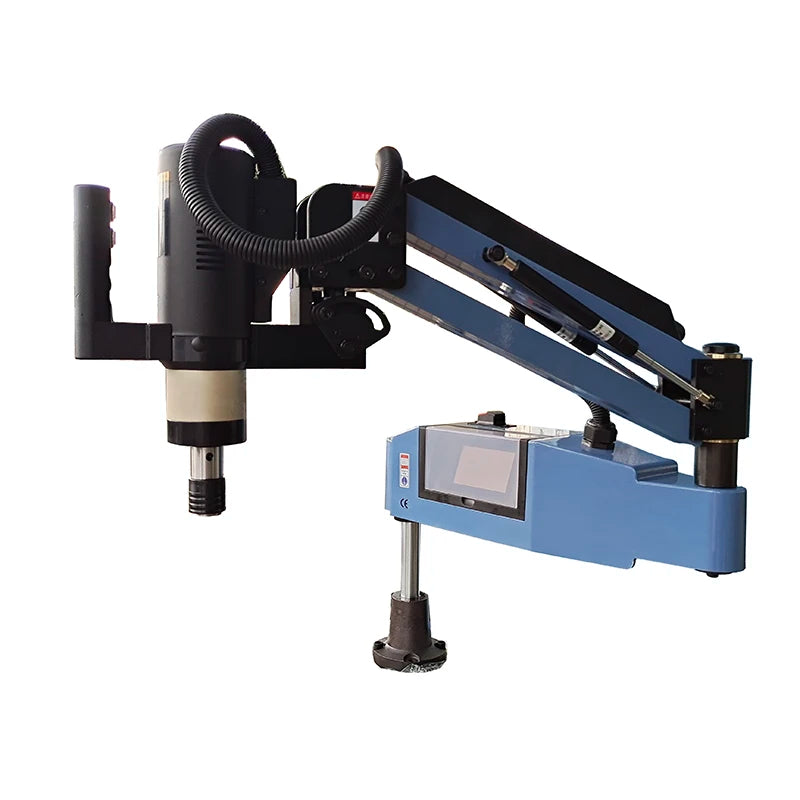

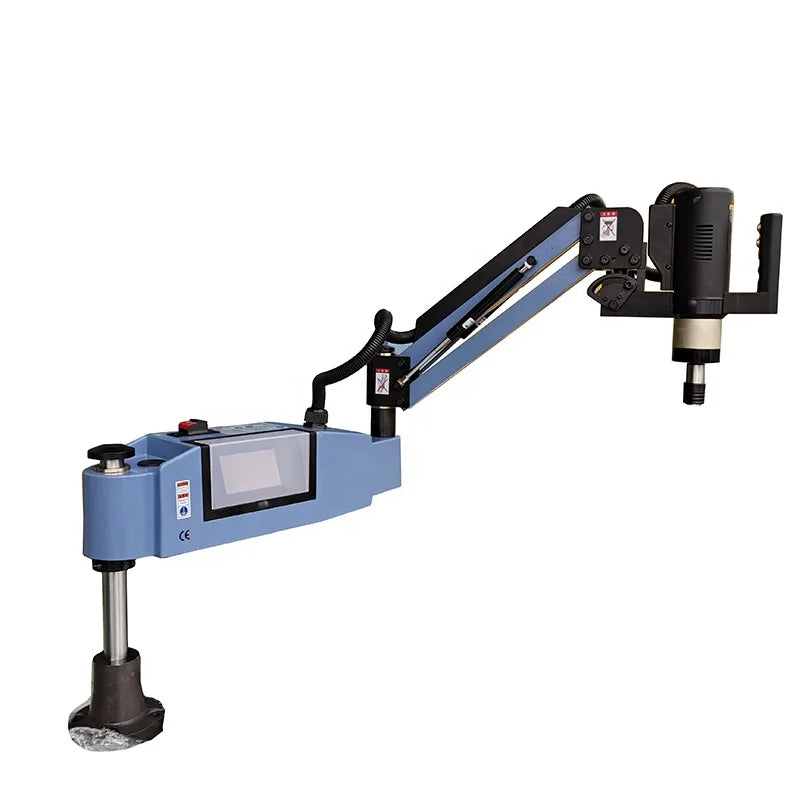

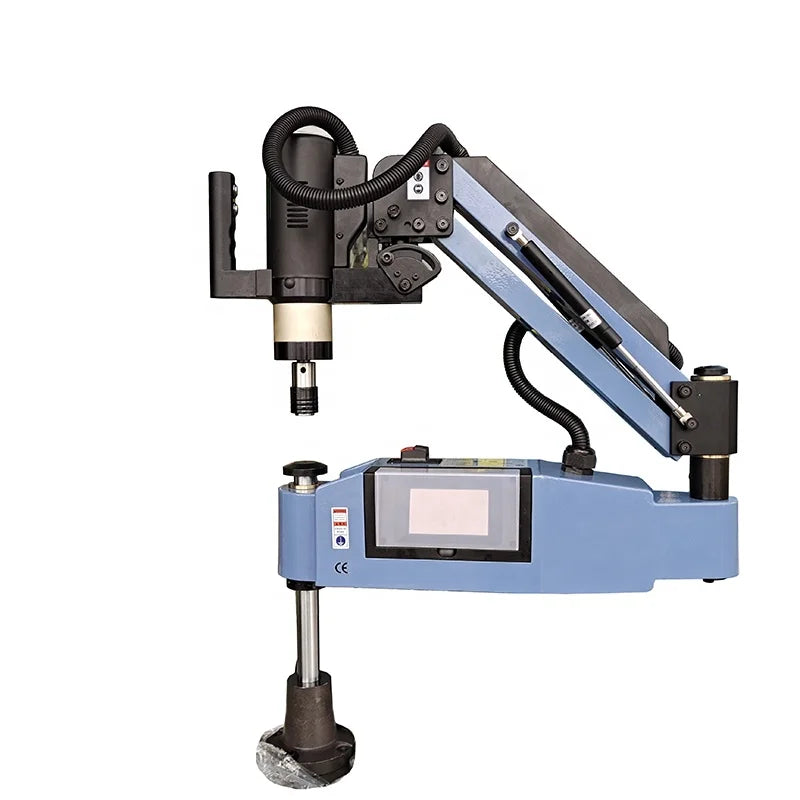

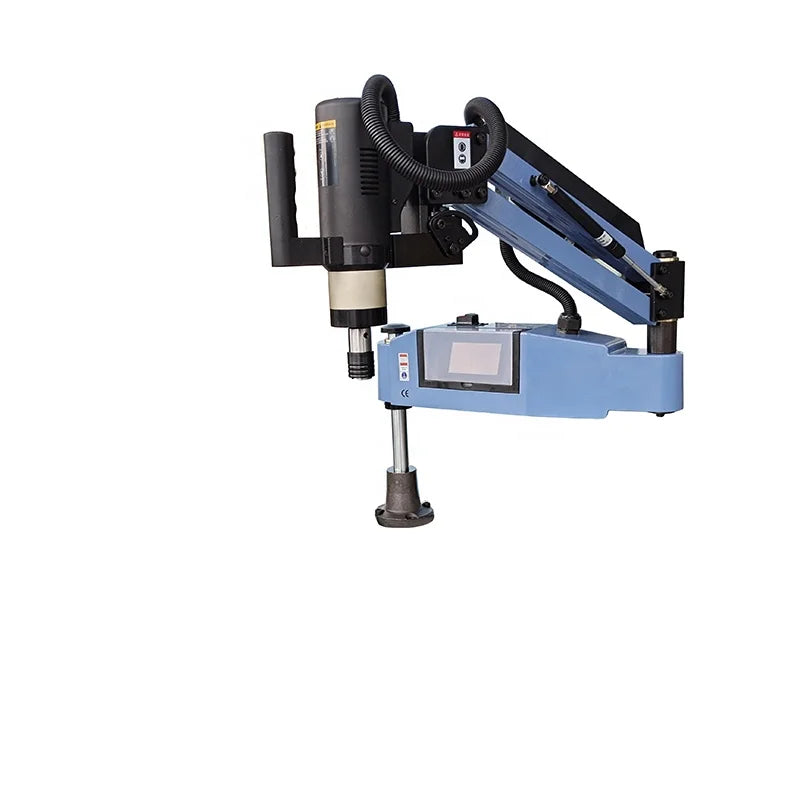

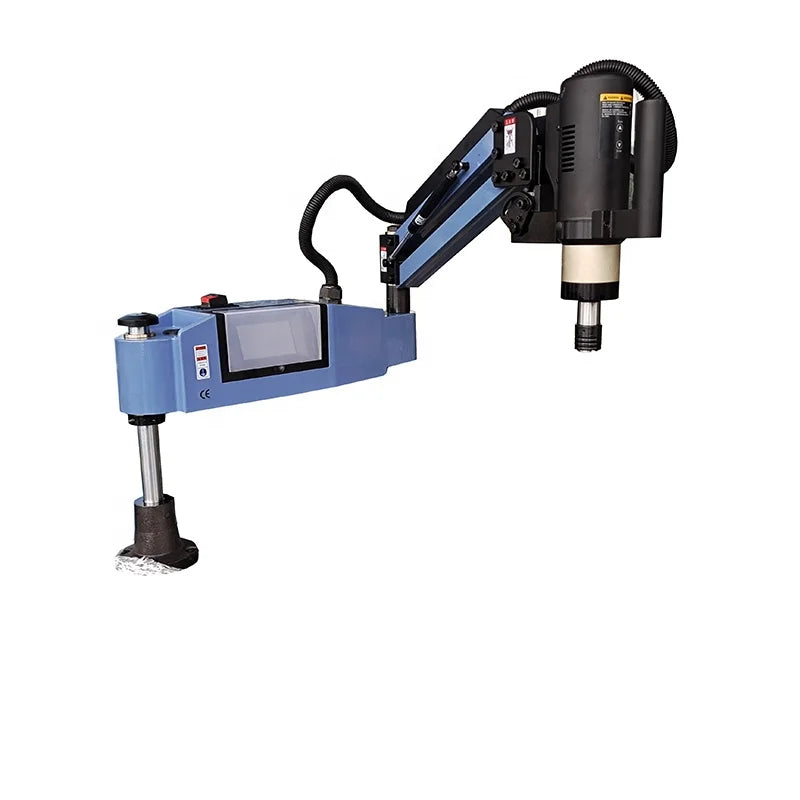

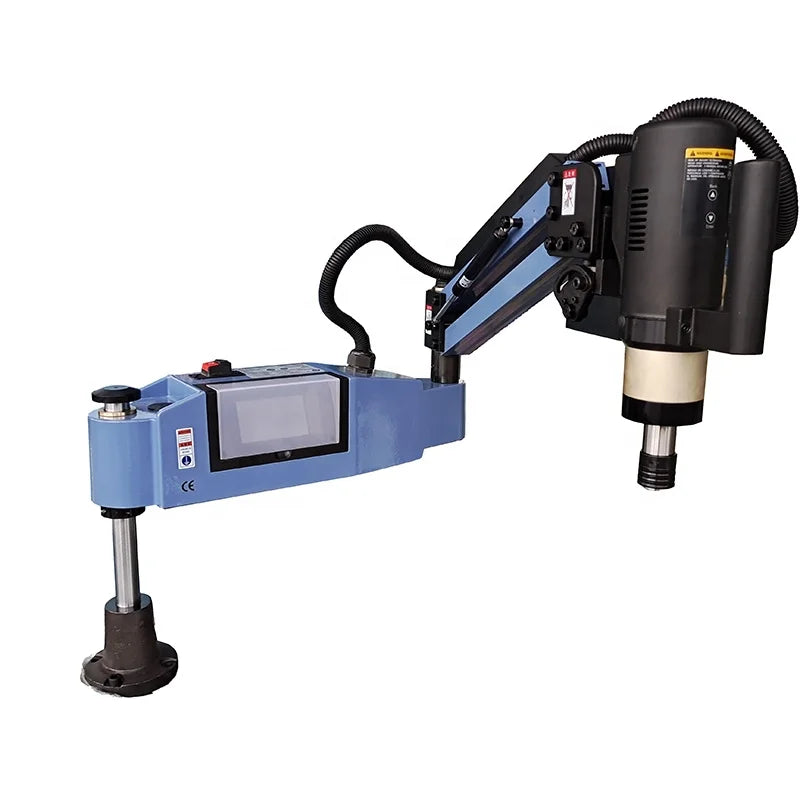

M3-M16 Hot CNC Automatic Flexible Arm Nut Screw Servo Electric Tapping Machine
M3-M16 Hot CNC Automatic Flexible Arm Nut Screw Servo Electric Tapping Machine
Couldn't load pickup availability
SPECIFICATIONS
Applicable Industries: Machinery Repair Shops
Brand: WEICHANG
Brand Name: NoEnName_Null
Color: Blue
Condition: New
DIY Supplies: Electrical
Hign-concerned Chemical: None
Marketing Type: Hot Product 2019
Material: Cast iron
Model: M16
Motor: 600W
Origin: Mainland China
Place of production: GUANGDONG,CHINA
Product name: Electric tapping machine
Showroom Location: None
Speed: 0-312r/min
Tapping Range: 3-16MM
Use: TAPPING MACHINE
Warranty of core components: 1 Year
brand name: WEICHANG
cnc or not: CNC
core components: motor, Other
dimension(l*w*h): 70*66*23CM
drilling speed: 0-312rpm
key selling points: High Safety Level
machinery test report: Provided
max. drilling dia. (mm): 16
model number: M3-M16
place of origin: Guangdong, China
power (kw): 600W
range of spindle speed(r.p.m): 0 - 312 r.p.m
type: Drilling & Milling Machine
video outgoing-inspection: Provided
voltage: 220V
warranty: 1 Year
weight (kg): 35 KG
For more details and discounts, please contact me:
Sales Director: luna
Whatsapp: +86 13677461310；
Email 1097887544@qq.com;
(For oversized or overweight machines, please contact the sales manager for shipping and payment options).
1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine
or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non
deformation, beautiful appearance.

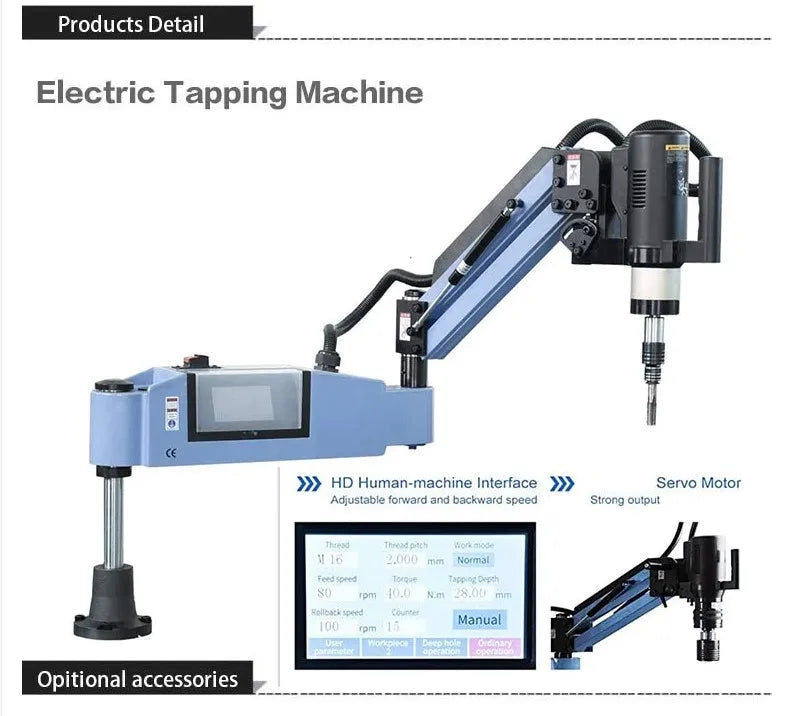

3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy
workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth
controller.
6, repeated positioning fast, tapping speed, high production efficiency.
Specification
|
Modle
|
M3-M12
|
M3-M16
|
M6-M24
|
M6-M30
|
M6-M36
|
M12-M48
|
|
Tap size
|
M3-M12
|
M3-M16
|
M6-M24
|
M6-M30
|
M6-M36
|
M12-M48
|
|
Voltage
|
220v
|
220V
|
220V
|
220V
|
220V
|
220V
|
|
Speed
|
0-1200rpm
|
0-375rpm
|
0-200rpm
|
0-200rpm
|
0-156rpm
|
50-200rpm
|
|
power
|
600W
|
600w
|
1200W
|
1200w
|
1200W
|
1200W
|
|
arm
|
1100MM/1500MM
|
1100MM/1500MM
|
1200MM/1500MM
|
1200MM/1500MM
|
1200MM/1500MM
|
1200MM/1500MM
|
|

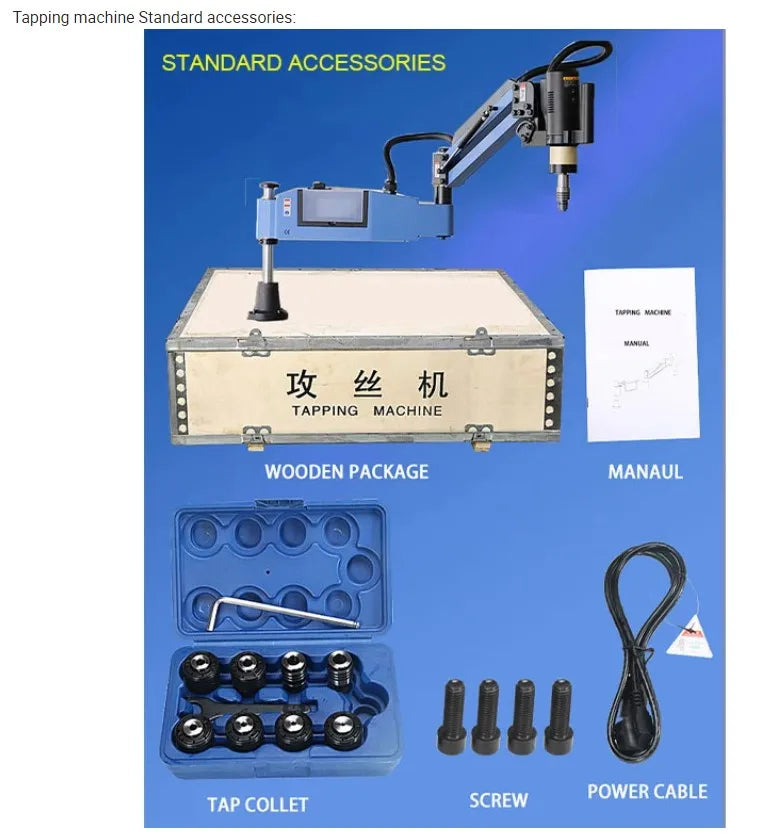

Standard accessory
|
ISO M3-M12 collet
|
ISO M3-M16 collet
|
ISO M6-M24 collet
|
ISO M6-M30 collet
|
ISO M6-M36 collet
|
ISO M12-M48 collet
|
|

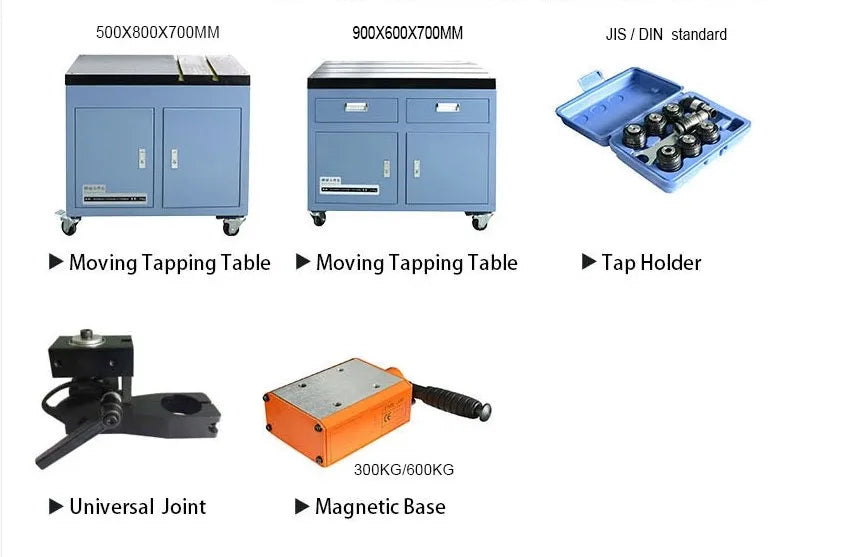

Optional accessory
|
600KG magnetic base 1000KG magnetic base
|
|
|
|
|
|
|
|
500*800 working table 900*600 working table
|
|
|
|
|
|
|
|
JIS or Din standard collet
|
|
universal head
|
|
|
|
Q1: Can I add my logo to the product or carton?
A1: Yes, OEM is available for us.
Q2: Do you have an inspection procedure for the product?
A2: Yes, We have a strict inspection of product quality and packing.
Q3: Can you accept small quantity?
A3: Yes, small quantity accepts and quick delivery.
Q4: Are you Trading Company or Manufacture?
A4: We own self-industry for this product. Our company combines trading and
manufacture.
Q5: How long is your delivery time?
A5: It is 10-15days generally, or it is 30-50days when you customize the product.
